Our Products

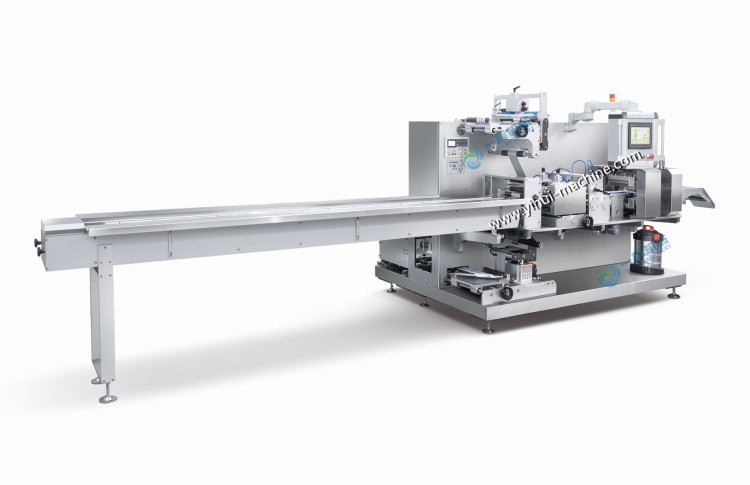

Model STD400
High-Speed Automatic Four-Side Sealing Packing Machine
Summary
This four side sealing packing machine is specially designed for packaging flat products, which products with height less than 10mm. Applied in medical, personal care and patch products, including plasters, antipyretic patches, medical patches, face mask, cooling patches, etc.
Advantage
* High-Speed Continuous working, with mechanical speed up to 180 pcs/min, far more eficient than conventional models.
* No Molds, adjustable size within the packaging range, faster changeovers.
* Built-in web guiding system ensures precise film alignment, minimizing setup time.
Main technical parameters
Production | 90-150bag/min |
packaging bag size | L 70-300W 70-165 H 1-8 |
compressed air | 0.3m³/min |
Rated frequency | 50 HZ |
Rated voltage | AC380V(three-phase five-wire) |
totalworkrate | about14kw(see number of motors) |
Machine Weight | about2350KG(total) |
Dimensions | 5608×1611×1790mm(subject to actual) |
Model STD600
Multi-Lanes Horizontal Four-Side Sealing Packing Machine
Summary
This four side sealing packing machine is specially designed for packaging flat products, which products with height less than 10mm. Applied in medical, personal care and patch products, including plasters, antipyretic patches, medical patches, face mask, cooling patches, etc.
Advantage
* Automatic packaging, automatic alignment, automatic coding
* Automatic feeding of 1-10 tablets per packet, with a stable speed of 140-200 packets per minute
* Easy change mold for different packing sizes.
* The entire machine is controlled by 11 servo systems, ensuring stable operation
Main technical parameters
Model | STD-600 |
production capacity | 40-150bag/min |
Packing size | L70-280mm, W70-165mm, H 1-10mm |
compressed air | 0.3 m³/min |
power supply | AC380V50Hz(three-phase) |
power | 14KW |
Weight | 2350kg |
Dimensions | 5608×1611×1790mm |
Model STD700
Pillow Type Automatic Four Side Sealing Packing Machine
Summary
This four side sealing packing machine is specially designed for packaging flat products, which products with height less than 10mm. Applied in medical, personal care and patch products, including plasters, antipyretic patches, medical patches, face mask, warm baby heating patches, foot patches, foot pads, cooling patches, mosquito patches, mobile phone stickers, etc.
Main technical parameters
Production efficiency | 50-100bags/min |
Packaging bag size | L 70-300mm W 70-165mm H 1-8mm |
Compressed air | 0.3m³/min |
Rated frequency | 50 HZ |
Rated voltage | AC380V(three-phase five-wire) |
Total Power | 14kw (according to actual) |
Machine Weight | 2350KG |
Dimensions | 5608×1611×1790mm (according to actual) |
Model STD800
Fully Automatic Horizontal Zipper Bag Four Side Seal Flow Packing Machine
Summary
This four side sealing packing machine is specially designed for packaging flat products, which products with height less than 10mm. Applied in medical, personal care and patch products, including plasters, antipyretic patches, medical patches, face mask, warm baby heating patches, foot patches, foot pads, cooling patches, mosquito patches, mobile phone stickers, etc.
Advantage
* Automatic packaging, automatic alignment, automatic coding
* Automatic feeding of 1-10 tablets per packet, with a stable speed of 100-160 packets per minute
* The mold is easy to replace and can be used for four-side sealing packaging of zippered bags or non-zippered bags
* The entire machine is controlled by 11 servo systems, ensuring stable operation
Main technical parameters
Model | STD-800 |
Capacity | 80-140bags/min |
Packing size | Custom made by mold |
Compressed air | 0.3m³/min |
| Voltage | AC380V, 50Hz (3 phase) |
Power | 21KW |
Weight | 2350kg |
Dimensions | 7114×2091×2129mm |
